3″ Submersible Pump 29 GPM, 1.5 HP,292 ft,110/220V – 3SDM4/15

3″ Submersible Pump 29 GPM, 1.5 HP,292 ft,110/220V – 3SDM4/15

shipping FREE SHIPPING


Get it in 5-8 Business Days
  • Signature Required

Premium delivery PREMIUM DELIVERY

shipping FREE SHIPPING


Get it in 5-8 Business Days
  • Signature Required

Premium delivery PREMIUM DELIVERY

Now Only

$509.99

Free Shipping

ETA: 5 to 8 Business days

Applications:

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions:

  • Maximum fluid temperature up to +35
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3″

Motor and Pump:

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz – 3 Wire
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906

PUMP SPEC:

  • Max Head(ft): 292
  • Max Flow(Gpm): 29
  • Discharge: 1 ¼”
  • HP: 1.5
  • Pump Material: Stainless Steel 304
  • Pump Model: 3SDM4/15
  • Pump Diameter: 3″
  • Warranty: 1 Year Manufacture

Estimated Delivery Time: 3 – 5 Business Days

.

Add to Cart

Cart

Related Products

Description

Submersible Pump

Applications:

  • For water supply from wells or reservoirs
  • For domestic use
  • for civil and industrial applications
  • For garden use and irrigation

Operating conditions:

  • Maximum fluid temperature up to +35
  • Maximum sand content : 0.25%
  • Minimum well diameter : 3″

Motor and Pump:

  • Rewindable motor
  • Single-phase:110V/60Hz or 220V/60Hz – 3 Wire
  • Equip with start control box
  • Pumps are designed by casing stressed Curve tolerance according to ISO 9906

PUMP SPEC:

  • Max Head(ft): 292
  • Max Flow(Gpm): 29
  • Discharge: 1 ¼”
  • HP: 1.5
  • Pump Material: Stainless Steel 304
  • Pump Model: 3SDM4/15
  • Pump Diameter: 3″
  • Warranty: 1 Year Manufacture

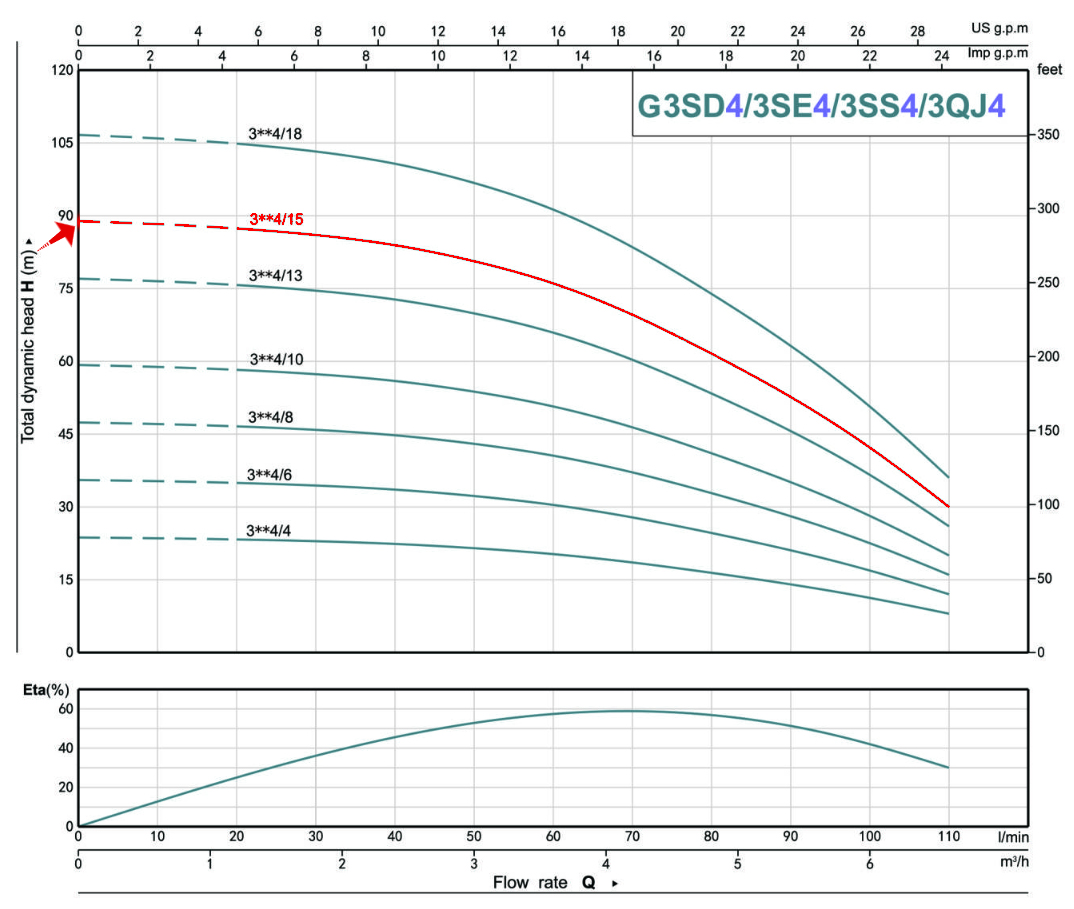

Performance Data



MODEL P2 DELIVERY      N = 3450 1/min
1~

220V

KW HP Q m3/h 0 0.6 1.2 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.0 6.6
l/min 0 10 20 30 40 50 60 70 80 90 100 110
3SD M4/15 1.1 1.5 H (m) 89 88 88 87 85 81 77 70 62 53 43 29

Dimension and Weight

Model DN Dimension(inch) Weight(lbs)
1~

110V/220V

P M(s) M(t) T(s) T(t) P M(s) M(t) T(s) T(t)
3SD M4/15 1″/1* 0.25″/1* 0.5″ 27.1 19.4 17.6 46.5 45 5.5 22 19.2 27.5 25





Components Material
Pump external casing AISI 304 SS
Delivery casing Cast-Cu ASTM C85500
Suction lantern Cast-Cu ASTM C85500
Diffuser Plastic.PC
Impeller Plastic.POM
Shaft AISI 304 SS
Shaft coupling AISI 304 SS
Wear ring AISI 304 SS
Motor external casing AISI 304 SS
Top cover Cast-Cu ASTM C85500 Cast-iron ASTM NO.30
Bottom support AISI 304 SS
Mechanical seal Special seal for deep well(Graphite-Ceramic/TC)
Shaft  AISI 303 SS-ASTM 1045/5140
Seal lubricant oil Oil for food machinery and pharmaceutic use.

Electric deep well submersible pumps are multistage centrifugal pumps operating in a vertical position, also Liquids, accelerated by the impeller and lose their kinetic energy in the diffuser where a conversion of kinetic to pressure energy takes place and This is the main operational mechanism of radial and mixed flow pumps.

Also submersible pumps shaft is connected to the gas separator or the protector by a mechanical coupling at the bottom of the pump and Fluids enter the pump through an intake screen and are lifted by the pump stages and other parts include the radial bearings (bushings) distributed along the length of the shaft providing radial support to the pump shaft, also An optional thrust bearing takes up part of the axial forces arising in the pump but most of those forces are absorbed by the protector’s thrust bearing. well pumps



See All Products

Additional information

Weight 37 lbs
Dimensions 53 × 8 × 9 in
Choose Voltage

110V, 220V

AC Voltage

110-115 Volts, 110/220 Dual, 208-220 Volts

Horse Power AC

1.5 HP

Submersible Pump Size

3"

HP Submersible pump

1.5 HP

Material Submersible pump

Stainless Steel 304

Pump Outlet

1 1/4"

Phase

Single Phase
